Description
clutch pedal assembly Wabco Hydraulic Clutch Pedal w/ Slave Cylinder AssemblyWabco Hydraulic Clutch Pedal w Slave Cylinder Assembly Pedal Clutch Hydraulic Control System, Non Sync, 2. 4 M Long Freightliner Assembly P N: A02 14081 001 Supersession P N: A02 13962 000 Wabco Assembly P N: 400 030 032 0 WAB 400 030 032 0 WAB 400 030 032 0 WAB4000300320 4000300320 Clutch P N: A02 14078 001 Wabco P N: 965 001 209 0 9650012090 WAB 965 001 209 0 WAB 965 001 209 0 WAB9650012090 Slave P N: A02 13133 00 02 13133 000 Wabco P N: 970 051 503

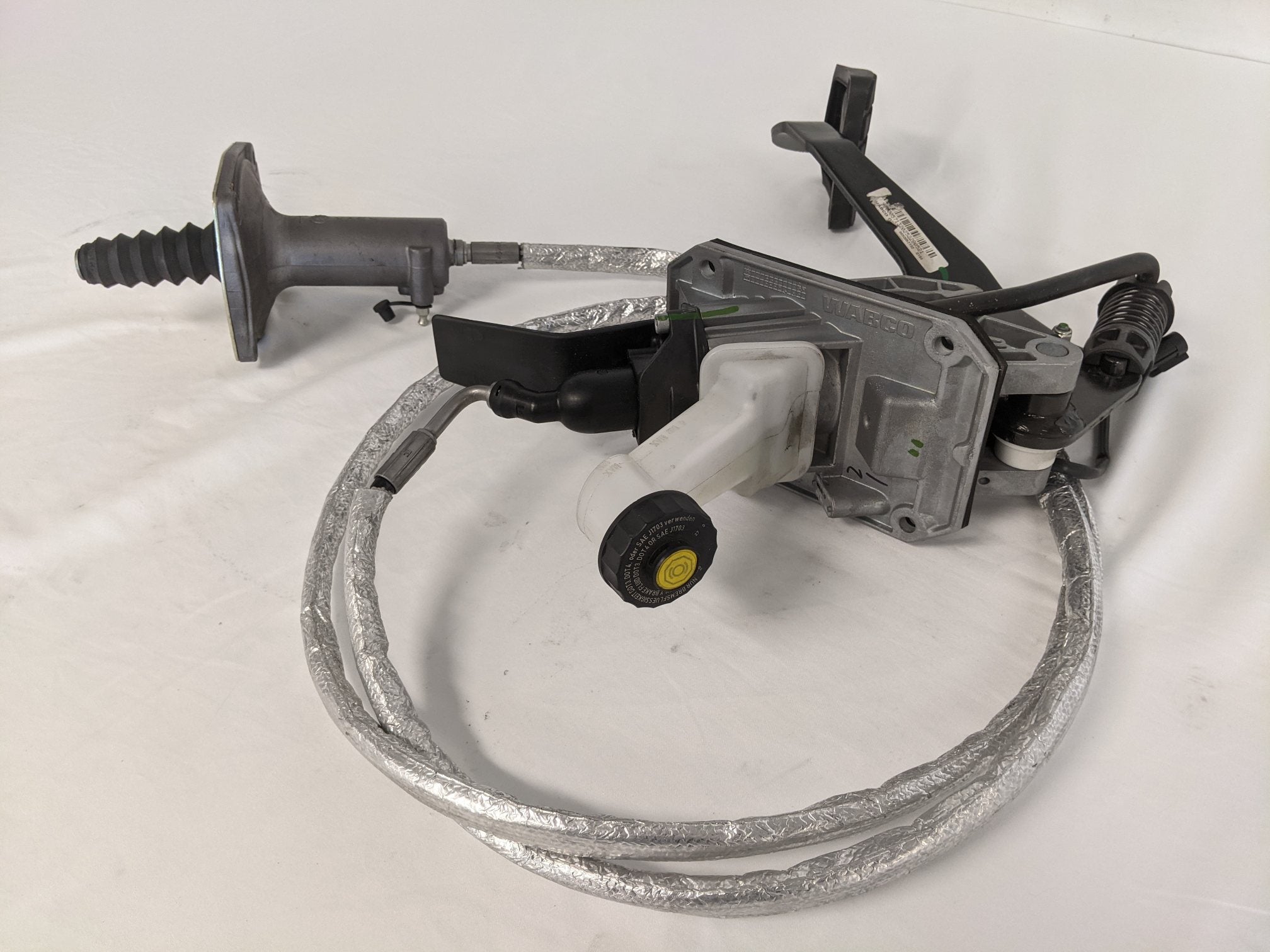

Wabco Hydraulic Clutch Pedal w/ Slave Cylinder Assembly
-
Pedal - Clutch Hydraulic Control System, Non Sync, 2.4 M Long
-
Freightliner Assembly P/N: A02-14081-001
- Supersession P/N: A02-13962-000
-
Wabco Assembly P/N: 400 030 032 0 / WAB 400 030 032 0 / WAB 400-030-032-0 / WAB4000300320 / 4000300320
- Clutch P/N: A02-14078-001 / Wabco P/N: 965 001 209 0 / 9650012090 / WAB 965 001 209 0 / WAB 965-001-209-0 / WAB9650012090
-
Slave P/N: A02-13133-00 / 02-13133-000 / Wabco P/N: 970 051 503 0 / 9700515030 / WAB 970 051 503 0 / WAB 970-051-503-0 / WAB9700515030
- Clutch Pedal Specifications:
- Port 2 Threads: Quick Connection 0.48"
- Stroke: 8.46"
- Temperature Range: -40° to +176° F
-
Clutch Only Cross Reference P/N's: Kenworth S9650012090, Mack 8235-S9650012090, Mack 6300-9650012090, Meritor S9650012090, Peterbilt S9650012090, Volvo S9650012090, Volvo WAB9650012090, A02-14041-001, A0214041001, 193133449577
- For More Info On Clutch Pedal Visit Link: Wabco Clutch Pedal Link
- Slave Specifications:
- Max Operating Pressure: 1450.4 psi
- Medium: Brake Fluid SAE J 1703
- Mounting: 4x Ø 9.0 mm
- Port 32 Threads: M7 x 1
- Push-Rod Threads: Ball R6
- Stroke: 2.10"
- Temperature Range: -40° - 176° F
-
Slave Only Cross Reference P/N's: Freightliner TDAS9700515030, Kenworth S970-051-503-0, Mack 8235-S9700515030 & 6300-9700515030, Meritor S9700515030, Navistar S9700515030 & ZDRS9700515030, Peterbilt S970-051-503-0, Volvo TDA S9700515030 & WAB9700515030
- For More Info on Slave Cylinder Please Visit Link: Wabco Slave Cylinder Link
-
May Have Cosmetic Blemishes
-
See Photos For More Details
